The Malossi 360° intake manifold delivers premium flexibility for Piaggio 2-stroke scooters.

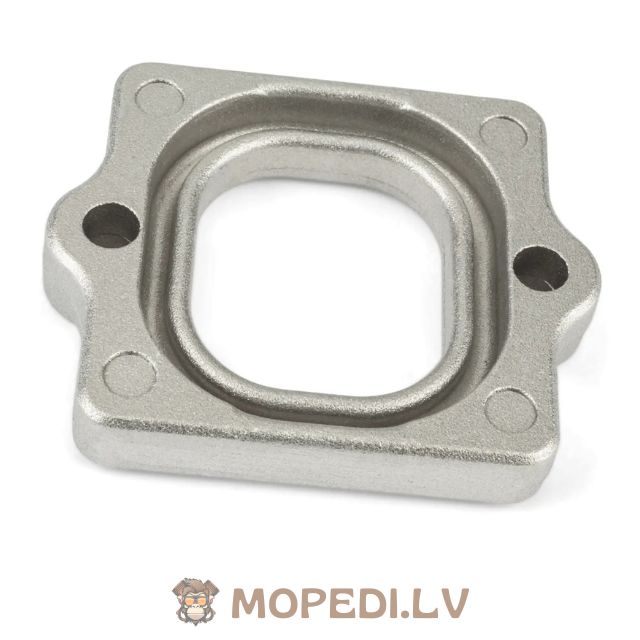

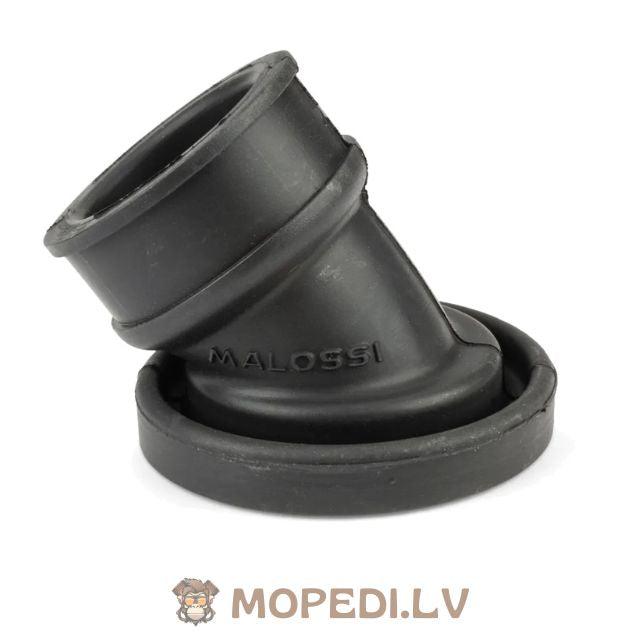

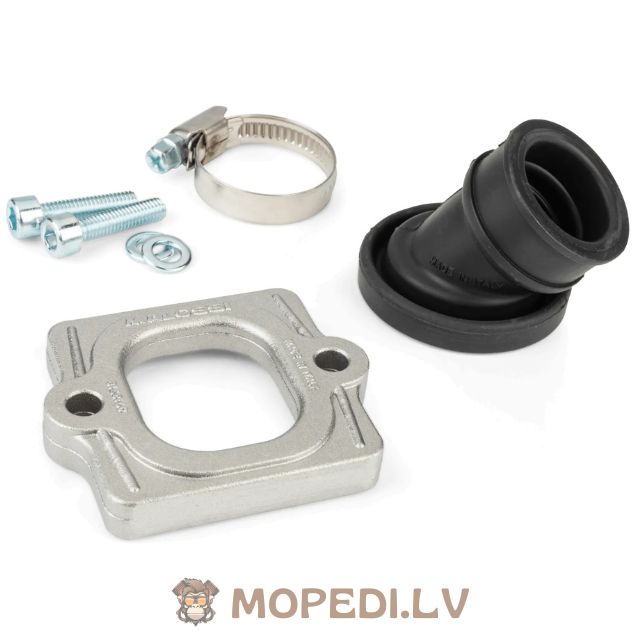

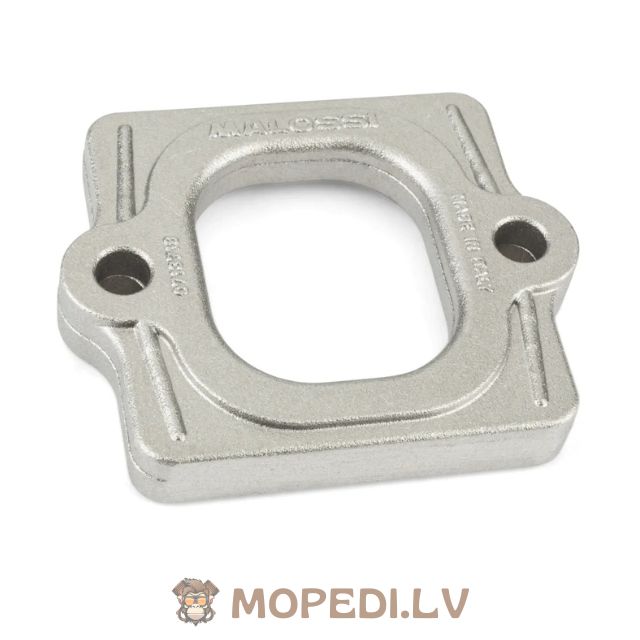

Its innovative two-part design — combining a durable FKM/Viton rubber component with a rigid base plate — rotates a full 360°, allowing you to position the intake exactly as your engine bay demands. Compact and direct, it secures via simple screw fastening to your crankcase or reed valve manifold.

• Material: High-quality FKM / Viton rubber
• Screw hole diameter: 6.7mm
• Screw spacing: 52mm
• Inner diameter: 22mm
• Connection: 24mm
• Overall length: 29mm

Compatibility :

• Dellorto PHVA / PHBN / PHBG 12–21mm (24 and 25mm connection)
• Polini CP 17.5–21mm (25.5mm connection)
• Gurtner and Weber 12–16mm
• TK and China 2-stroke 12–16mm
• Arreche 16–21mm

Measure your carburetor's connection size directly. Rubber sleeves typically sit slightly undersized before installation, as they expand during mounting.
