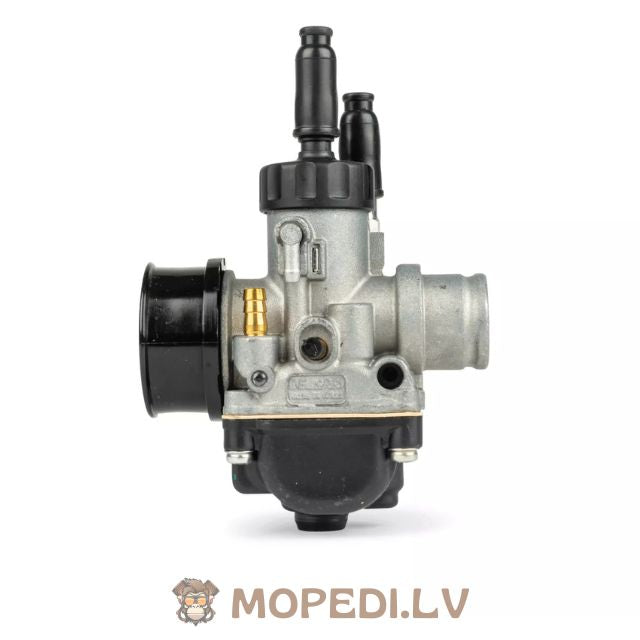

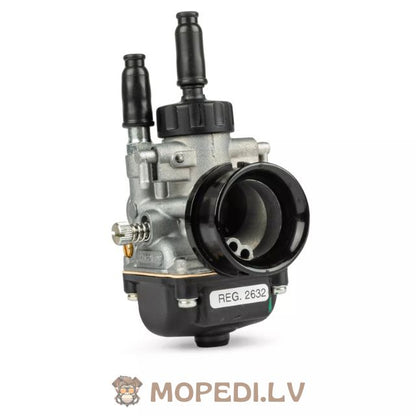

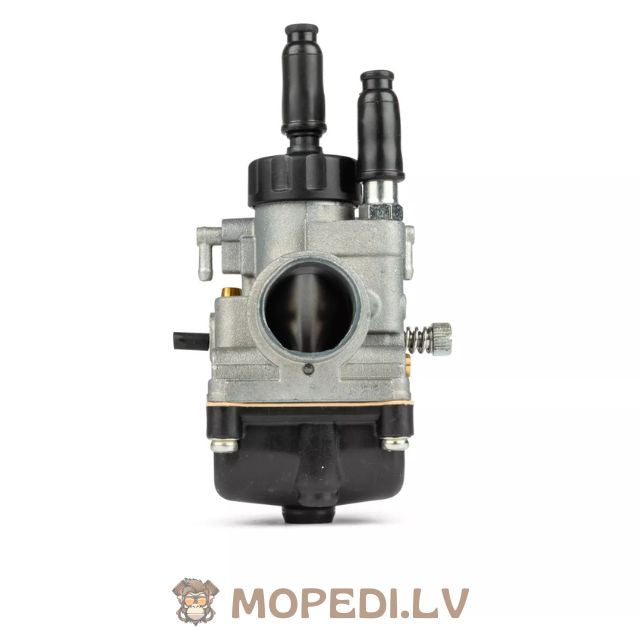

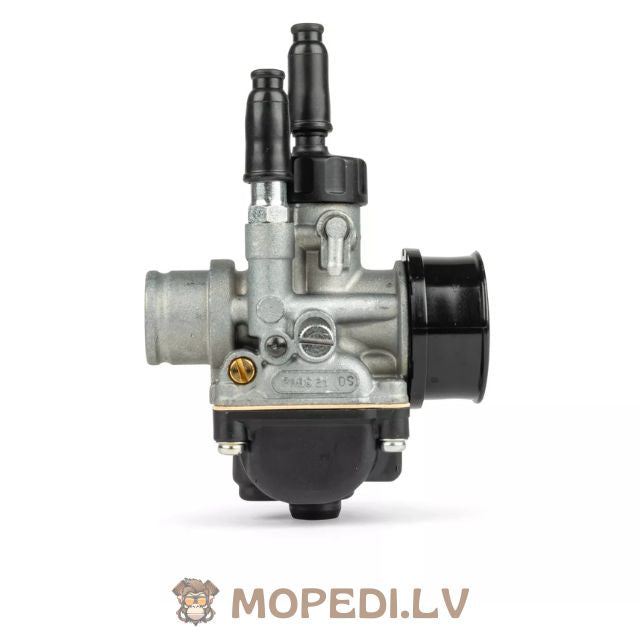

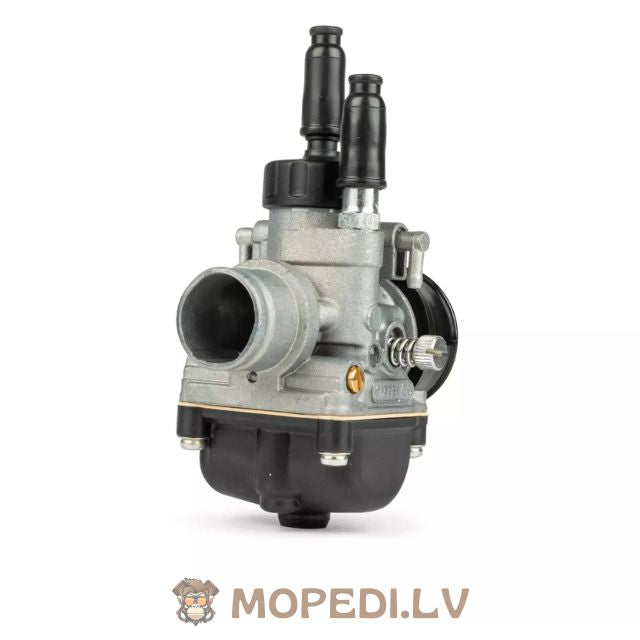

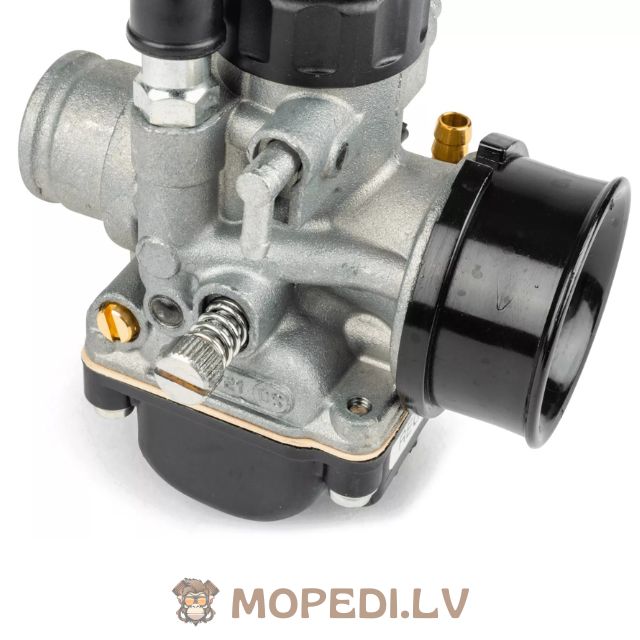

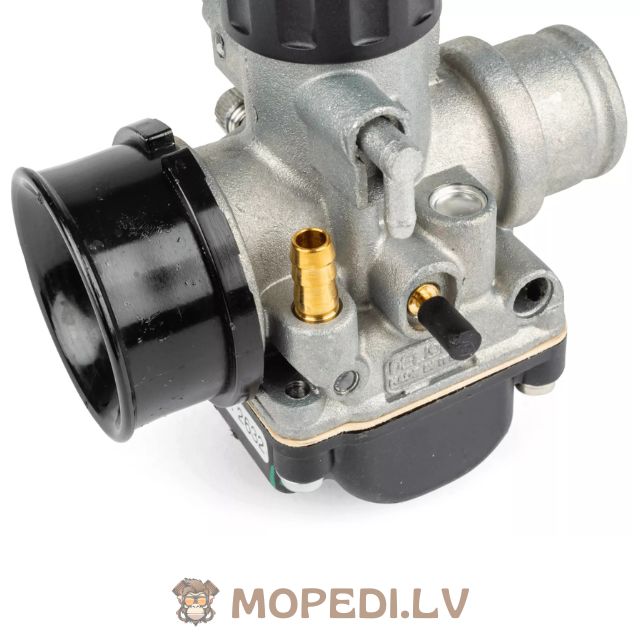

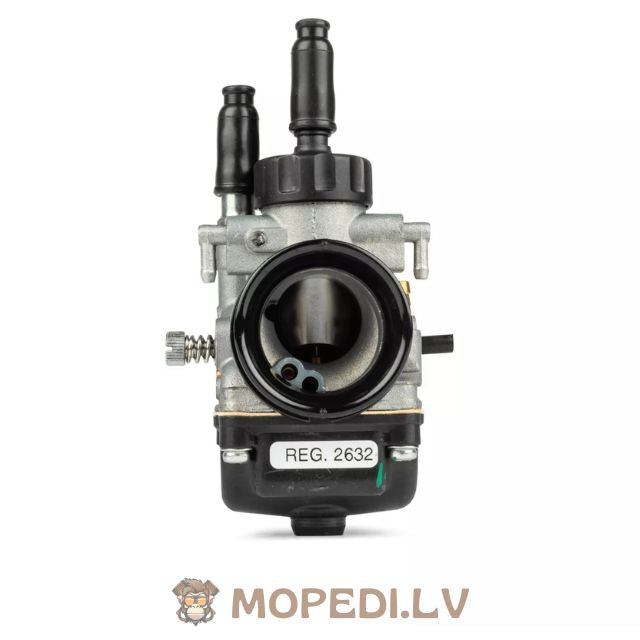

Dellorto PHBG 21 Carburetor

Dell’Orto PHBG 21 mm DS carburetor for 50cc scooters, motorcycles and mopeds.
When upgrading your engine with a 50cc or 70cc Sport / Racing cylinder, it is highly recommended to replace the stock carburetor with a larger one to ensure optimal performance.

The carburetor is delivered with a size 92 main jet. We recommend ordering additional 5 mm jets to fine-tune the carburetion for your specific setup.

Technical Data – Dellorto PHBG 21 DS

• Model: PHBG 21 DS (rubber-mounted)
• Main jet: 92 (5 mm)
• Idle jet: 50
• Choke jet: 60
• Needle: W07
• Emulsion tube: AU262
• Venturi diameter: 21 mm
• Intake manifold connection: 25 mm
• Air filter connection: 38 mm
• Manual choke (cable choke or choke lever)
• With oil inlet
• Without vacuum port
• Without pre-heater
• Straight carburetor top
• Dell’Orto reference: 2632
