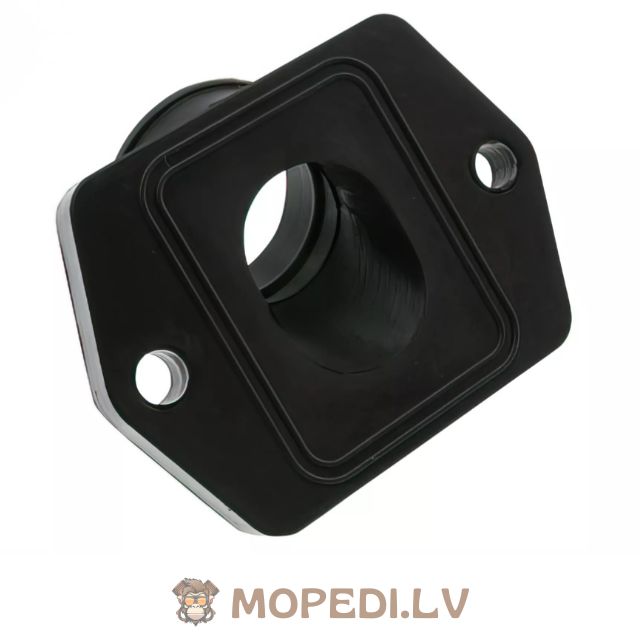

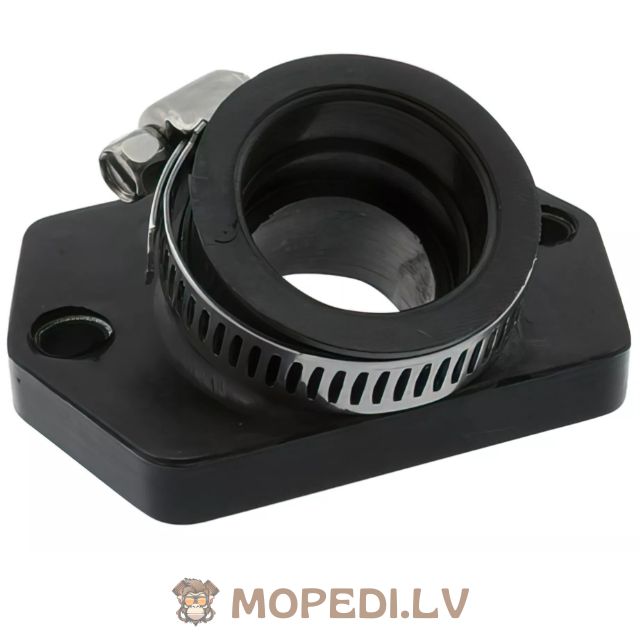

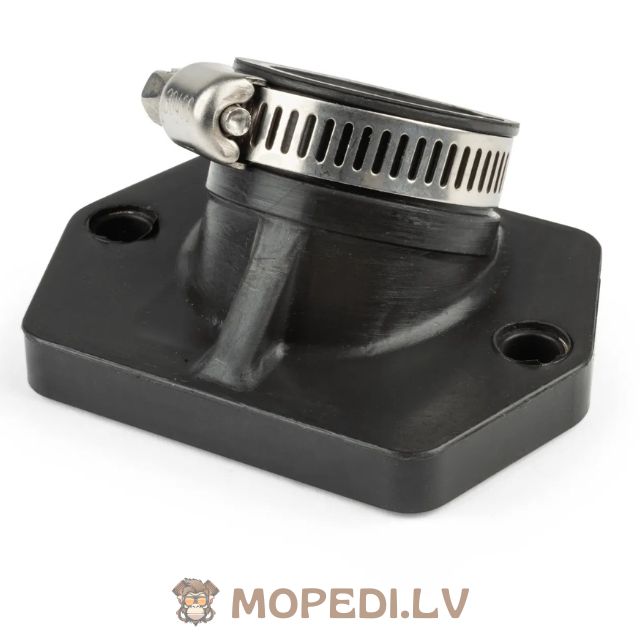

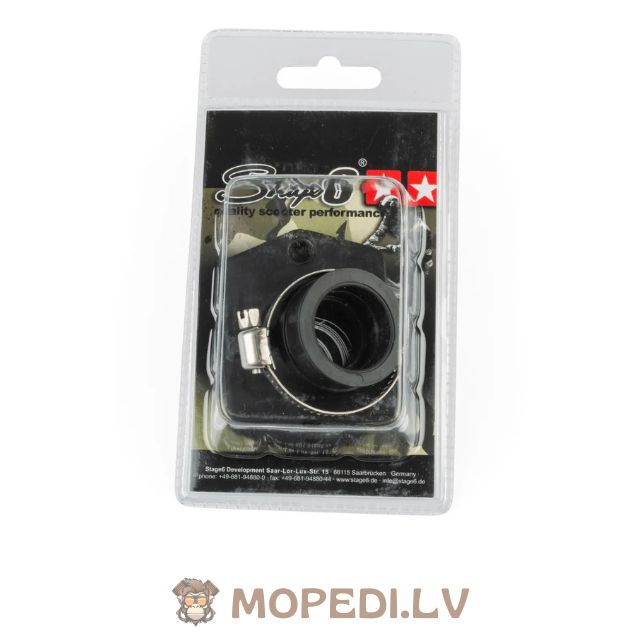

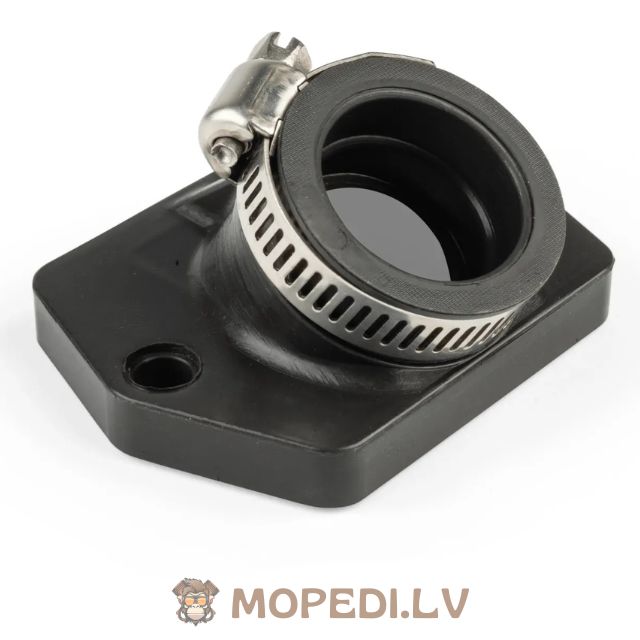

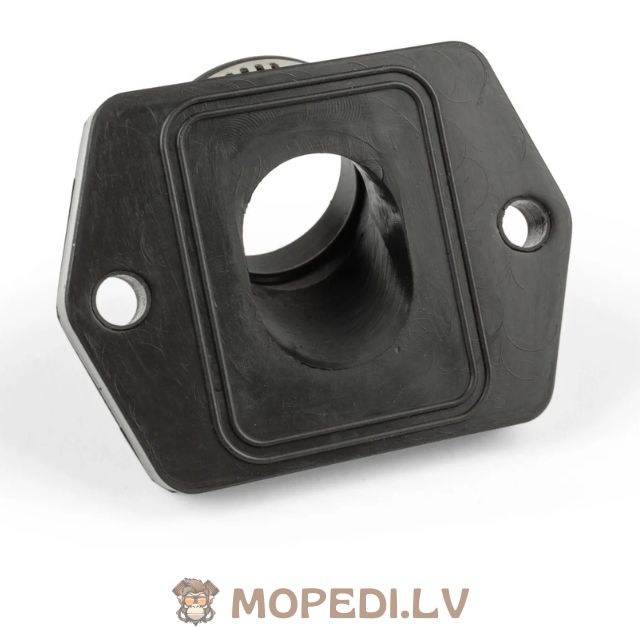

Stage6 Viton® Short Straight Intake Manifold – Piaggio

The Stage6 short intake manifold for Piaggio scooters is a high-quality, cost-effective alternative to more expensive manifolds. Its short design improves throttle response and shifts the torque curve higher in the rev range, making your engine feel livelier.

For modern fuels containing up to 20% alcohol, Stage6 uses FKM (Viton®) material instead of standard NBR rubber. Viton® is more resistant to heat and aggressive fuels, ensuring durability and reliability over time.

Important: The original air filter box cannot be used with this manifold.

Connection diameter: 24mm – 25mm

Compatible carburetors:

Dellorto PHVA / PHBN / PHBG 12–21mm

Polini CP 17.5–21mm (25mm connection)

Gurtner and Weber 12–16mm

TK and China 2-stroke 12–16mm

Arreche 16–21mm

Material: FKM (Viton®), alcohol- and heat-resistant

Short straight design for improved engine response
